Eagle Machinery & Repair

is the Midwest Region's dealer

for Oliver Machinery of Kent, WA



For more information call us
616-997-2211 or 616-336-0034

Introducing a new Product Category in 2019
Be sure to scroll to the bottom of the page to see our line of Dust Collection & Drill Presses






         Lathe


 18" Lathe
Model #2018.002
$3,500.00

2-hp, 1-ph, 220v
Swing over bed 18"
42" Between centers
200-240 rpm var. spd
Range 1 200-600 rpm
Range 2 600-240 rpm
Spindle 1-1/4", 8tpi RH
Up to 36 Flutes
MT2 Spindle & Tailstock Tapers
Spindle Bore 9/16"
Faceplate 6" OD
Spindle to floor 42-1/2"
Overall 69" L x 18" W x 48" H
Gross weight 800 lbs
Optional Accessories
p/n 2018.A001.........Tool Rest Riser Assembly.................$190.00
p/n 2018.A002..........Extension Bed Assembly.................$265.00




Table Saws



All weights cited are shipping weights

10" Jobsite Table Saw w/Roller Stand - 10010

#10010.001

$550.00

Accessories
10010.A004  Pre-Cut Dado Table Insert $40.00
10010.A005  Zero Clearance Table Insert $30.00
10010.A006  Zero Clearance Dado Insert $40.00



10" Jobsite Table Saw

10" Blade dia.
5/8" Arbor dia.
Left blade tilt
3-1/8" max cut depth
@ 90 degree
2-1/4" max cut depth
@ 45 degree
13/16" x 8" max
dado size
28" max rip to
right of blade
Table
25-3/16" x 22-7/16"
2,000-4,200 var. speed
 blade or Disc RPM
110-lbs ship weight
Table Height 34"
2-hp, 1-ph, 115v, 15-amp

Fence lock for safe transportation
Riving knife included for non-through cuts
Adjustable rear material support safely, handles large work pieces
Fold-up stand features roller wheels for easy transportation at jobsite
Blade can be replaced with a sanding disc for greater versatility
Built in 2-1/2 port for efficient dust management
Light weight aluminum table for easy lifting
#10040

10040.001.........$1,490.00

10040.002.........$1,600.00

Accessories
10040.A002  Zero Clearance Table Insert $40.00
10040.A003  Pre-Cut Dado Table Insert $40.00
10040.A004  230v Mag. Switch Conversion Kit $70.00
10040.A005  Zero Clearance Dado Insert $40.00

10" Professional Table Saw

10" Blade dia.
5/8" Arbor dia.
13/16" max width of dado
3-1/8" max cut depth
@ 90 degree
2-1/4" max cut depth
@ 45 degree
Left blade tilt
36" or 52" max cut
right of blade
12" max cut left of blade
4,500 rpm Arbor Speed
overall 32"L x 67"W x 83"H
20 x 27 Table
44 x 27 w/ extensions
1.75-hp, 115/230V
pre-wired 115V
36"  - 350-lbs
52" - 375-lbs
Built in wheels w/ locks for mobility Built in storage for fence, blade guard, miter gauge & riving knife


#4016

4016.003..................$3,000.00
4016.003-A001..........$3,150.00
4016.004...................$3,000.00
4016.004-A001...........$3,150.00

Accessories
4016.A002  Rear Extension Table 24" x 36" $350.00
4016.A004  Zero Clearance Table Insert Blade $40.00
4016.A005  Zero Clearance Table Insert Dado $40.00

10" Table Saw

10" Blade dia.
5/8" Arbor dia.
13/16" max width of dado
3" max cut depth @ 90 degree
2-1/4" max cut depth @ 45 degree
4" dia. Dust port
36" max cut right of blade
12" max cut left of blade
Left blade tilt
overall 74"L x 32 1/2"W x 40" H
36" Table height
3,450 rpm Arbor Speed
  Model 4016.003................... 5-hp, 1-ph, w/36" rail (720 lbs)
  Model 4016.003-A001........... 5-hp, 1-ph, w/ side table & 52" rail (820 lbs)
  Model 4016.004................... 5-hp, 3-ph w/ 36" rail (720 lbs)
  Model 4016.004-A001........... 5-hp, 3-ph w/ side table & 52" rail (820 lbs)

                        Can be wired 3 phase, 460 volt for additional fee
  **Tables Saws that are ordered with a 52" rail and a side table
do not come with the right cast extension wing **

Optimus Square Tube Fence System

#4045

4045.003....................$3,700.00
4045.003-A001...........$3,800.00
4045.004...................$3,700.00
4045.004-A001..........$3,800.00

Accessories
4045.A002  Rear Extension Table 24" x 36" $350.00
4045.A004  Zero Clearance Table Insert Blade $50.00
4045.A002  Zero Clearance Table Insert Dado $50.00

12" Table Saw

12" Blade dia.
1 or 5/8" Arbor interchangeable
13/16" max width of dado
4" max cut depth @ 90 degree
2-2/3" max cut depth @ 45 degree
4" dia. Dust port
36" max cut right of blade
12" max cut left of blade
Left blade tilt
overall 75"L x 45"W x 41" H
36" Table height
3,450 rpm Arbor Speed
   Model 4045.003................... 5-hp, 1-ph, w/36" rail (750 lbs)
   Model 4045.003-A001........... 5-hp, 1-ph, w/ side table w/ 52" rail (850 lbs)
   Model 4045.004.................... 7.5-hp, 3-ph w/ 36" rail (750 lbs)
   Model 4045.004-A001........... 7.5-hp, 3-ph w/ side table & 52" rail (850 lbs)

                           Can be wired 3 phase, 460 volt for additional fee

  **Tables Saws that are ordered with a 52" rail and a side table
do not come with the right cast extension wing **

#4060

4060.001................$5,400.00
(sug. retail $6,199)

Accessories
4060.A004  Replacement Table Insert Blade $90.00
4060.A005  Dado Arbor Extension $46.00
4060.A006  Dado Table Insert $90.00
16" Table Saw

14"-16" Blade dia.
1" Arbor dia.
4" dia. Dust port
5-1/2" max cut depth @ 90 degree
4-1/4" max cut depth @ 45 degree
Right blade tilt
52" max cut right of blade
38"D x 48"W  Table dimension w/Extensions
3,750 rpm Arbor Speed
overall 54"D x 85-1/2"W x 42-1/2" H
3-ph, 10-hp
Can be wired 3 phase, 460 volt for additional fee
1,120 lbs





Jointers






4225.201.....$1,600.00


6" Parallelogram Jointer

1/2" Infeed table travel
5500 rpm V-Belts
Table 66-1/2"L x 7-1/4" W
1/2" Rabbeting cap.
4" dia Dust port
Fence 38"L x 4"H
Fence tilts 90-45 degrees
Positive stops 90 & 45 degrees
Extra wide base
4 Side Inserts $99.00
(pack of 10)
Solid cast iron base
Overall 67"L x242"W x 41"H
     4-sided insert helical cutterhead, 1-hp, 1-ph
  (375 lbs)




4235.201......$2,200.00


8" Parallelogram Jointer

1/2" Infeed table travel
5500 rpm Cutterhead spd
Table 74-7/8"L x 9-1/4" W
1/2" Rabbeting cap.
4" dia Dust port
Fence 38"L x 4"H
Fence tilts 90-45 degrees
Positive stops 90 & 45 degrees
Base 38"L x 19"H
4 Side Inserts $99.00
(pack of 10)
Motor 1-ph, 2-hp, 220v
Overall 75-1/2"L x 32"W x 41"H
 4-sided insert helical cutterhead, 2-hp, 1-ph
 (490 lbs)



#4265

$6,100.00
(sug. retail $6,973)


12" Parallelogram Jointer

3/4" Infeed table travel
6000 rpm Cutterhead spd
Table 88"L x 12-1/8"W
3/4" Rabbeting cap.
6" dia Dust port
Fence 60-1/4"L x 5-3/8"W
Fence tilts 90-45 degrees
Positive stops 90 & 45 degrees
Overall 88"L x 40"W x 41"H
Ship weight - 980 lbs
56 German mfg carbide insert
Rack & pinion fence
    Model 4265C.101.4S........4 Sided Insert Helical Cutterhead  3-hp, 1-ph Baldor Motor
    Model 4265C.102.4S........4 Sided Insert Helical Cutterhead  5-hp, 3-ph Baldor Motor

Massive Ribbed cast iron construction ensures flatness, stability,
longevity & vibration-free operation


#4275

$7,100.00
(sug. retail $8,119)
16" Parallelogram Jointer

Foot activated emergency power shutoff
Fence features flip down L-shaped attachment for use with thin stock
Handwheel controlled infeed table allows for quick adjustment and auto-lock during operation

3/4" Infeed table travel
5500 rpm Cutterhead spd
Table 100"L x 16"W
3/4" Rabbeting cap.
6" dia Dust port
Fence 47"L x 6"W
Fence tilts 45 degrees
Positive stops 90 & 45 degrees
Overall 100"L x 40"W x 41"H
Ship weight - 1320 lbs
76 German mfg carbide insert
Max depth of cut 1/8"
 Model 4275C.101.4S.........4 Sided Insert Helical Cutterhead  5-hp, 1-ph Baldor Motor
   Model 4275C.102.4S........4 Sided Insert Helical Cutterhead  7.5-hp, 3-ph Baldor Motor


  Jointer Knives

4 Side Inserts (pack of 10) *will not fit BYRD Replacement Spiral Knives HSS (3) for Model 4240 Replacement Straight HSS Knives (4) for Model 4240

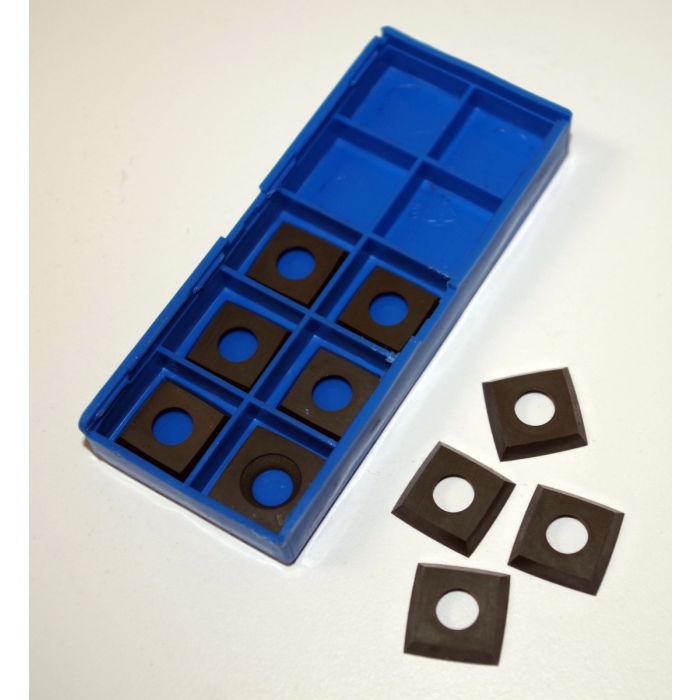

Helical Insert
(pack of 10)
will not fit Byrd

P-15mm 4-side
$90.00
Helical Insert
(pack of 10)

P-30mm TCT 2-side
$120.00
Spiral Knives HSS
(set of 3)

10" Jointer 4240.A101.....$70.00
Straight HSS Knifes
(set of 4)

10" Jointer 4240.A001.....$90.00
12" Jointer 4255.A001.....$100.00
16" Jointer 4270.A001.....$110.00


STANDARD helical cutterhead with German carbide inserts is included with jointer.




                       Planers
12-1/2" Thickness Planer - 10044

10044.201

$770.00



12.5" Planer

12.5 " Max Stock Width 5/64 & 3/64 Max Cut Depth
 2.5" or 4" dia. Dust Port
5/32" Min & 6" Max Stock Thickness 36 Insert - Byrd Cutterhead
1-7/8" dia Cutterhead
5" Min Stock Length 26 fpm Feed Speeds 1-ph, 2-hp, 15A, 115V
Ship weight - 72 lbs 12.5"-L x 10-5/16"-W Table
12.5" x 33-3/16"
 w/ Extension Wings


Built-in carry handles for easy portability
Blower assists in chip ejection during operation
4-depth stops allow easy set-up from 3/4" to 5/32"

15" Planer with Helical Cutterhead - 10014

#10014.201

$2,400.00

15" Planer

Helical cutter head with German-made carbide inserts
4-sided cutting inserts are indexed and easy to replace
Built-in mobile base allows easy movement in the shop
Auto-depth lock features twin nitrogen cylinders virtually eliminates snipping

 15" Max Stock Width  1/8" Max Depth of Cut
  4" dia. Dust Port
 3/16" Min & 6" Max
Stock Thickness
  4 Column Table Support
3" dia Cutterhead
5,000 rpm
6" Min Stock Length  16/20 fpm Feed Speeds
30-1/8" Table Height
28" x 47-1/2" x 52"'
Overall Dimensions
15" x 19-5/8" Table
"15 x "47-5/8" w/
Extension Wings
Ship weight - 470 lbs Built-in Lock Casters  2 adjustable bed rollers
 52 knife Helical Cutterhead 3-hp, 220v Only (1ph 12amp)



#4420.201

$3,300.00
(sug. retail $3,772.00)

16" Planer

 16 " Max Stock Width
1/8" Max Depth of Cut
 4" dia. Dust Port
3/8" Min & 6" Max Stock Thickness
90 Insert
 Helical Cutterhead
 2-7/8" dia Cutterhead
4800 rpm
 6" Min Stock Length
 16/20 fpm Feed Speeds
3" dia Infeed Roller
 4 Column Table Support
16"-L x 20"-W Table
16"-L x 44"-W w/ Extension Wings
Ship weight - 675 lbs
Digital Thickness Scale
2 Adjustable bed rollers
     4-sided Helical Cutterhead 5hp, 220v, 1ph, 23amp

Digital Readout w/ Tape Backup
Built in Casters for Mobility
Polished Steel Rollers

20" Planer with Helical Cutterhead - 4430
#4430.201

$3,500.00
(sug. retail $3,999.00)
20" Planer

 20 " Max Stock Width
 1/8" Max Depth of Cut
 5" dia. Dust Port
 1/4" Min & 8" Max Stock Thickness
68 Insert
Helical Cutterhead
 3-1/4" dia Cutterhead
5000 rpm
 7" Min Stock Length
16/20 fpm Feed Speeds
2-spd feed gearbox
20" x 21" Table
20" x 51" w/ Extension Wings
Ship weight - 625 lbs
45" x 35" x 43.5"
Overall Dimensions
 1 Adjustable Bed Roller
4-sided Helical Cutterhead 5hp, 230v, 1ph, 18amp

Top rollers allow easy return of stock
Helical cutter head with German-made carbide inserts.
4-sided cutting inserts are indexed and easy to replace.
Wixey digital read out allows precise thickness settings



#4455


4455.001/ 002..........$7,000.00
(sug. retail $7,999)

4455.103B/ 104B.......$9,000.00
(sug. retail $10,287)
22" Planer

 22 " Max Stock Width
 3/16" Max Depth of Cut
 5" dia. Dust Port
 1/8" Min & 9" Max Stock Thickness
900 CFM Min Required
 3" Infeed Roller
3-5/16" Outfeed Roller
 10" Min Stock Length
 20 & 30 fpm Feed Speeds
3" dia Cutterhead
5,000 rpm
 2 Adjustable Bed Rollers
32-1/4" x 23-3/4" Table
45"-W x 32"-D x 50"-H Overall
Ship weight - 1550 lbs
Digital Thickness Scale
Sectional Infeed Roller & Chip Breaker
4455.001............4 Knife HSS Straight Cutterhead 7.5hp, 1ph
4455.002............4 Knife HSS Straight Cutterhead 10hp, 3ph
4455.103B...........Byrd Shelix Cutterhead 7.5hp, 1ph
4455.104B...........Byrd Shelix Cutterhead 10hp, 3ph
      Can be wired 3 phase, 460 volt for additional fee




#4470


4470.001/ 002.........$11,600.00
(sug. retail $13,249)

4470.101B/ 102B.....$13,500.00
(sug. retail $15,430)



25" Planer

 25 " Max Stock Width
900 CFM Min Required
 5" dia. Dust Port
 1/8" Min & 9-1/4" Max Stock Thickness  20, 25 & 30 fpm Feed Speeds
 3" dia Infeed Roller
3" dia Steel Outfeed
 10" Min Stock Length
 2 Adjustable Bed Rollers
3-3/8" dia Cutterhead
2 Driven Outfeed Rollers
32"-L x 26"-W Table
46"-L x 23"-W x 56"-H Overall
Ship weight - 1850 Digital Thickness Controller   Up/Down Powered Table Travel
4470.001............4 Knife HSS Straight Cutterhead 10hp, 1ph
4470.002............4 Knife HSS Straight Cutterhead 15hp, 3ph
4470.101B...........Byrd Shelix Cutterhead 10hp, 1ph
4470.102B...........Byrd Shelix Cutterhead 15hp, 3ph
         Can be wired 3 phase, 460 volt for additional fee
p/n P-15mm TCT......4 Side TCT Helical Inserts (pack of 10)..........$99.00
p/n P-30mm TCT......2 Side TCT Helical Inserts (pack of 10).........$119.00
4 Side Inserts (pack of 10) *will not fit BYRD Replacement Straight HSS Knives (4) for Model 4240
4-Sided
Helical Insert
(pack of 10)
will not fit Byrd

P-15mm 4S....$90.00
15", 16", 20" & 25" Planers

Straight HSS Knifes
(set of 4)

4455.A001........$140.00
4470.A001........$180.00
Helical Insert
(pack of 10)

P-30mm TCT 2-side
$120.00
4-Sided
Byrd Insert
(pack of 10)

A-BYRD 10
$58.00




Bandsaws





#4620

$1,700.00
(sug. retail $1,944)

14" Bandsaw

Balanced cast iron wheels w/ rubber tires

Blade Spd 1480, 2300, 3240 FPM
14" Wheel Diameter
Table dim. 16" x 20"
108" Blade Length
Max Stock Height 12"
Table Height 38"
1/4 to 1" Blade width cap.
Throat Distance 13-5/8"
Table Tilt -10 to 45 degree
Model 4620.003........ 2-hp, 1-ph, 110/220v
Ship Weight 320 lbs

#4630


$2,400.00
(sug. retail $2,744)

18" Bandsaw

Balanced cast iron wheels w/ rubber tires

Blade Spd 1480, 2300, 3240 FPM
18" Wheel Diameter
Table dim. 18" x 18"
133" Blade Length
Max Stock Height 12"
Table Height 37-1/2"
1/4 to 1-1/4" Blade width cap.
Throat Distance 17-1/2"
Table Tilt
 -10 to 45 degree
   Model 4630.001........ 2-hp, 1-ph, 220v only
   Model 4630.002........ 2-hp, 3-ph, 220/440v
    Can be wired 3 phase, 460 volt for additional fee
Ship Weight 500 lbs





Shapers




#4705

$3,600.00
(sug. retail $4,115)
Shaper

Max tool dia 7" below table, 8" above table
Spindle speed 5,000, 7,000, 10,000 RPM
Table 39"L x 31-1/2W
Spindle dia 1-1/4" & 3/4 interchangable
Vert. Spindle Travel 4"
Table Height 36-1/2"
Machine dimensions
39"L x 31"W x 45"H
Spindle Direction Reversible
4" Dia Dust Port
Micro-adjustable fence
 w/ full safety features
800 CFM min.
ship weight 800 lbs
   Model 4705.001.....1-ph, 5-hp, 220v only
   Model 4705.002.....3-ph, 7.5-hp,220/440v, prewired 220v

* Cast Iron Dampening Base *
* Can be wired 3 phase, 460 volt for additional fee *

10047.001...$2,500.00
  10047.002....$2,600.00
 10047VS.001...$2,500.00
(pictured)

Shaper

Under Nut Capacity
4" w/ 1-1/4" spindle
Spindle speed 4,000, 6,000, 8,000, 10,000 RPM
Table 32" x 26"
Spindle dia 1-1/4" Spindle Travel 4" Min. 800 cfm required
Model 10047.001....1-ph, 3-hp, 230v           Model 10047.002....1-ph, 5-hp, 230v

Model 10047VS.001....1-ph, 3-hp, Variable Speed

* Mitre Gauge Included *
Accessories


Spindles
$90.00 ea.

 1/2" 10047.A001 (for 4705 & 10047)
 3/4" 10047.A002 (for 4705 & 10047)
  1"  10047.A003 (for 10047)
  1"    4705.A001 (for 4705)
 1-1/4" 10047.A006 (for 10047)
 1-1/4"  4705.A004 (for 4705)
Collets
for 4705 & 10047


   1/4" 4705.A002......$70.00

   1/2" 4705.A003.....$60.00





             Ripsaw




#4920

$14,400.00
(sug. retail $16,449)

Accessory
4910.A001
Straight Line Rip Saw Laser
fits 4910 & 4920
$1,499.00
Straight-Line Rip Saw

  Table Size:
     35"W x 54-1/4"L
    Table Height: 32"
 Blade dia: 12"
Arbor dia: 1"
7 Pressure Rollers
2 Rows Anti-Kick Devices
 Overall Dimensions
61"L x 45"W x 64"H
Blade speed: 4,500 rpm
(36-150 fpm variable)
600 cfm min. required
2-hp, 3-ph
230/460v feed motor
 Cutting Depth: 3-3/8"
Min Board Length: 8"
Max Rip Width: 18"
4" dia. Dust Port
Pivoting Control Panel
Automatic feed chain lubrication
Ship Weight 2,300 lbs
    Model 4920.001.........3-ph, 15-hp, 230/460v (prewired 230)

* Precision Cast Iron Micro-Adjustable Rip Fence *
* Variable Feed Rate for better control  *
* Optional Laser Guide *







Cutoff Saw



#5015

$5,100.00
(sug. retail $5,899)

14" Cutoff Saw RH Feed - blade on left

1" Arbor (4100 rpm)
Cutting capacity
(thicknes x width)
1" x 10"
2" x 9"
3" x 8"
25" x 23-1/4"
Table size
14" Blade
 Air Cycle Operation
Max. Cycle/min  95
Cut Rate up to 95 strokes/min
31"-L x 30"-W x 51"-H
overal dimensions
Min. Dust Removal 600CFM 4" Dust port Ship Weight 612 lbs
       Model 5015.002.........7.5-hp, 3-ph,220/440v (prewired 220v)
            Can be wired 3 phase, 460 volt for additional fee

 * Optional 3' Infeed & Outfeed Roller Tables *
* Optional dual palm switch *
* Precision ground arbor w/ high quality bearings *
* Foot-switch for handsfree operation *


#5025

5025.002..............$6,200.00
5025.003................$6,600.00
18" Cutoff Saw RH Feed - blade on left

1" Arbor (3450 rpm)
4-1/4" x 9-3/4"
Cutting capacity @ max height
26-1/4" x 27-1/2"
Table size
18" Blade
1" x 13-3/8"
Cutting capacity width
32-3/4" Table height
60 Cycle/ min max.
15 / 70 (CFM/PSI)
Air supply Required
30"-L x 32"-W x 44"-H
overall dimensions
600 CFM min. dust removal 4" Dust port
Cut Rate up to 60 strokes/min
       Model 5025.002.........3-ph, 7.5-hp, 220/440v (prewired 220v) (880-lbs)
        Model 5025.003.........3-ph, 10-hp,  220/440v (prewired 220v) (915-lbs)
           Can be wired 3 phase, 460 volt for additional fee

 * Optional Roller Tables w/ Adjustable Stops *
* Full Coverage Guards *
* Automatic Safety Kill Switch Guard *
* Cast Iron Fence & Table *

Accessories

5015.A001    3' Infeed and 3' Outfeed Roller Table Set (132-lbs) $800.00
5015.A004    6' Infeed and 6' Outfeed Roller Table Set (203-lbs) $1,900.00
5015.A002    Dual Palm Switch (requires Oliver installation) $550.00
5025.A002    6' Infeed and 6' Outfeed Roller Table Set (150-lbs) $1,900.00
5025.A004    10' Infeed and 10' Outfeed Roller Table Set (2800-lbs) $2,600.00








      Boring Machines have been discontinued





  Jointer-Planers have been discontinued




    Wide Belt Sanders
#5355
$13,000.00
 (sug. retail $14,859)
25" Wide Belt

Digital Thickness Controller
Thickness Sensor
Var. Speed Feed
Max Stock Width 25"
Max Stock Thick 5"
Min Stock Thick 1/8"
Belt  75"L x 25"W
Air req. 80 psi
Exhaust req. 800 cfm
Pressure Shoe w/ Roller
Overall dimensions
 53"L x 46"W x 85"H
4 Elevating Screws
    Model 5355.002.......15hp, 3ph, 220/440v, Prewired 220v (1,100 lbs)
     Conveyor motor....1hp, 1ph, 220v  /  1hp, 3ph, 220/440, prewired 220v

* Fully Adjustable & Removable Platen *
* Y-Delta Soft Start on Main Motor *

#5385
$17,000.00 1-ph
$16,000.00 3-ph
37" Wide Belt

Digital Thickness Controller
Thickness Sensor
Var. Speed Feed
Max Stock Width 37"
Max Stock Thick 5"
Min Stock Thick 1/8"
Belt  75"L x 37"W
Air req. 80 psi
Exhaust req. 1,600 cfm
Pressure Shoe w/ Roller  Overall dimensions 53"L x 58"W x 85"H 4 Elevating Screws
      Model 5385.001.......10hp, 1ph, (2,425 lbs)
     Model 5385.002.......20hp, 3ph, 220/440v, prewired 230v (2,425 lbs)
     Conveyor motor....1hp, 1ph, 220v  /  1hp, 3ph, 220/440, prewired 220v

* Y-Delta Soft Start on Main Motor *
* Fully Adjustable & Removable Platen *
#5360
$18,000.00
(sug. retail $20,574)

25" Double Head Wide Belt

Photo Sensors for tracking
Power Table     height adjustment
Var. Speed Feed         15-49 fpm
Max Stock Width 25"
Max Stock Thick 6"
Min Stock Thick 1/8"
Abrasive Belt
75"L x 25"W
Air req. 80 psi
Exhaust req. 800 cfm
4 Elevating Screws
 Overall dimensions  63"L x 45"W x 86.5"H
Digital Thickness Controller
    Model 5360.002.......15hp, 3ph, 220/440v, prewired 220v (2,750 lbs)
     Conveyor motor....1hp, 3ph, 220/440v, prewired 220v

* Fully Adjustable & Removable Platen *
* Infeed Support Roller 2 Pcs w/ Support Bracket *
#5390
$21,800.00
(sug. retail $24,918)
37" Wide Belt Double Head

Photo Sensors for tracking Power Table     height adjustment
Var. Speed Feed         15-49 fpm
Max Stock Width 37"
Max Stock Thick 6"
Min Stock Thick 1/8"
Abrasive Belt
75"L x 37"W
Air req. 80 psi
Exhaust req. 1,600 cfm
4 Elevating Screws
 Overall dimensions  63"L x 57"W x 86.5"H
Digital Thickness Controller
   Model 5390.003.......20hp, 3ph, 220/440v, prewired 220v (3,630 lbs)
      Conveyor motor....1hp, 3ph, 220/440v, prewired 220v

* Fully Adjustable & Removable Platen *
* Infeed Support Roller 2 Pcs w/ Support Bracket *




 Edge & Spindle Sanders



#6303

$1,200.00
 (sug. retail $1,372)

6" x 89" Oscillating Edge Sander

Cast Iron Tables
main 29.5" x 10"
end 3.75" x 11.75"
Belt Speed 3,900 FPM 1/4" Oscillation Stroke
3" x 23.5" Fence Min. 650 FPM required
 Overall dimensions
50" x 24" x 49"

    Model 6303.001.....1.5hp, 1ph 115/230V (270 lbs)




#6305

$980.00
 (sug. retail $1,120)

6" x 89" Tilting Edge Sander

Cast Iron Table
27" long x 10" wide
  Belt Speed 3,900 FPM
  Belt can be used in any position between horiz & vert
Adjustable End Table
Table tilts 90-180 degrees
  Overall dimensions
48" x 21" x 48"
    Model 6305.001.....1.5hp, 1ph, 220v Only  (280 lbs)


* Mitre Gauge Included *




#6310

$3,900.00
 (sug. retail $4,458)
6" x 108" Oscillating Edge Sander

Balanced aluminum drive pulleys
Table moves Up/Down
Has belt tension & tracking adjustment
Belt Speed 3,224 FPM
Osc. 50-60 per min
Table tilts 45-degrees
Graphite backing reduces friction for longer belt life
    Model 6310.001.....2hp, 1ph (540 lbs)

* Easy to Operate *
* Heavy Steel Base & Table Ensures a
Solid Stable Platform While Sanding *

#6315

$5,350.00
 (sug. retail $6,116)

9" x 138" Oscillating Edge Sander


Main Table 11-3/4" x 48"
End Table 13" 18" radius
Main Table tilt
 -5 deg. in, 45 deg. out
Both Tables move Up/Down
Belt Speed 3,500 FPM
Osc. 24 per min
Oscillation Stroke 3/4"
  Overall dimensions
82" x 32" x 50"
    Model 6315.001.....3hp, 1ph, 230 only (725 lbs)

* Main table has spring assisted raising & lowering*
* End table allows contoured sanding applications*
*Drums are precision balanced for smooth operation

#6905

$600.00
 (sug. retail $686.00)

Bench Top Spindle Sander

Table size
14-1/2" x 14-1/2"
Table tilts
 0 to 45 degrees
Spindle speed 1,720 rpm
Overall dimensions
17" x 17" x 21"
Spindle stroke....15/16"
Osc per min.......29
4 Table Inserts match
spindle choices at 0 - 45 deg.
Included Spindle sizes (dia. x length)

1/4 x 6 1/2 x 6 5/8 x 6 1-1/2 x 6 2 x 6
   Model 6905.001.....1/2hp, 1ph, 115 only (pre-wired 115v plug)   (80 lbs)
    Accessories -  3" Spindle & Table Insert.........$80.00 (p/n 6905.A001)

* Five interchangeable spindles included *
* 1-1/2" & 2" spindles feature a rubber sleeve *
* Switch features large paddle stop & is lockable *

#6910.003

$1,800.00
 (sug. retail $2,057.00)
Spindle Sander

Table size
25-1/4" x 27-1/4"
Table tilts
 0 to 45 degrees
Spindle speed 1,720 rpm
Overall dimensions
25.25" x 27.25" x 50"
Osc. travel....1-1/2"
Osc per min.......75
3 Table Inserts
Included Spindle sizes (dia. x length)

1/4  x 5 3/8 x 6 1/2 x 6 5/8 x 6 3/4 x 9
1 x 9 1-1/2 x 9 2 x 9 3 x 9 4 x 9

    Model 6910.003.....2hp, 1ph, 115/230v (pre-wired 115v plug 16amps)   (370 lbs)

* Cast Iron Table *
* Oscillation Provides an Extremely *
* Fine Sanding Finish *



          DRILL PRESSES



#10060 Bench..$500.00

#10061 Floor..$540.00


14" Swing Bench or Floor Drill Press

Table 11-1/2" round
Table tilt +/- 45
Drilling capacity 3/4"
Chuck capacity 5/8"
Chuck taper JT-3
12 Spindle Speeds
Swing 13-1/4"
Spindle Taper MT-2
Spindle Travel 3-1/8"
Spindle range 280-3000rpm
Bench Model
Spindle to table 17-3/4"
Spindle to base 25-1/4"
Base 9-5/8" x 16-3/4"
Overall Height 38-1/2"
Floor Model
Spindle to table 31-1/2"
Spindle to base 48-1/2"
Base 10-1/2" x 16-3/4"
Overall Height 62"
    Bench Model 10060.001.......$500.00   1/2-hp, 1-ph,115v (8 amps)    (106-lbs)
     Floor Model  10061.001.......$540.00   1/2-hp, 1-ph,115v (8 amps)    (121-lbs)

* Cast iron pulleys reduce vibration "
*  Available in bench or floor model versions *
* Laser pointer is built-in for precise repeat drilling *
* LED lamp provides a well lit work area *
*Table rotates 360 & tilts 45 *

#10062

$750.00
 (sug. retail $857.00)

17" Swing Floor Drill Press

Table 12" x 12"
Table tilt +/- 45
Drilling capacity 3/4"
Chuck capacity 5/8"
Chuck taper JT-3
 16 Spindle Speeds
Swing 17"
Spindle Taper MT-2
Spindle Travel 3-1/8"
Spindle range 240-3400rpm
Spindle to table 28"
Spindle to base 48-1/2"
Base 11-3/4" x 19-5/8"
Overall Height 64-1/2"

     Model 10062.001.....3/4-hp, 1-ph, 115v (12 amps)   (198-lbs)


* Drill Chuck guard included *
* Laser pointer is built-in for precise repeat drilling *
* Spindle supported by high quality sealed ball bearing *
* Cast iron pulleys reduce vibration "

#10063

$1,300.00
 (sug. retail $1,486.00)

22" Swing Floor Drill Press

Table 16" x 18-1/2"
Table tilt +/- 45
Drilling capacity 1-1/4"
Chuck capacity 3/4"
Chuck taper JT-3
 12 Spindle Speed
Swing 22"
Spindle Taper MT-3
Spindle Travel 4-1/2"
Spindle range 180-3420rpm
Spindle to table 26-3/4"
Spindle to base 48"
Base 19-5/8" x 22-3/4"
Overall Height 68-3/4"

    Model 10063.001.....1-1/2-hp, 1-ph, 115v (21 amps)   (372-lbs)


* LED lamp provides a well lit work area *
* Crank operation moves table up & down with locking clamp *
* Precision ground table features T-Slots *
* Positive depth stop allows repeated operations with ease *








#7660

$6,600.00
 (sug. retail $7,544.00)


Round Rod Milling Machine

Cutting Capacity
3/8" - 2-3/8"
Cutter motor 5-hp
Feed motor 2-hp
Min Stock Length 12"
Max Material Removal 3mm
Includes 1" & 2"
Cutter Set
Cutter spd 3,000-rpm
Feed spds 20,30,43,53 fpm
Overall Dimensions
36-1/4" x 30" x 39-1/2"
Model 7660.001....5-hp, 3-ph, 220v/440v pre-wired 220v (20/10 amp)  (770-lbs)

* Magnetic controls for safer operation *
* Maximum feed rate of 52 feet per minute *
* Feed can be reversed for quick stock removal in case of a jam *
Built-in 4" dust port allows efficiend dust management *

Round Rod Milling Machine Optional Accessories

7660.A001 12mm Knives (2) $95.00
7660.A002 18mm Knives (2) $95.00
7660 CH Assy 1
Custom Cutterhead made to your specifications
3/8" to 1-11/16" (9mm - 44mm)
$380.00
7660 CH Assy 2
Custom Cutterhead made to your specifications
 1-3/4" to 2-1/4" (45mm - 60mm)
$430.00



 Dust Collection

#7120

$430.00
 (sug. retail $491)
Portable Dust Collector-Single Stage

1-hp, 1-ph, 110v Air Flow 550 CFM Static Pressure 4.86 in. H2O
4" Inlet 14" dia. bag Sound rate 68dB @ 10'
Overall dimensions
30" x 15" x 73"
  Ship wt. 80-lbs





#7140

$630.00
 (sug. retail $720)
Dust Collector-Single Stage

2-hp, 1-ph, 120/220v
prewired 110v plug
Air Flow 1,550 CFM Static Pressure 11 in. H2O
6" or 4"x2" Inlet 20" dia. bag Sound rate 75-85dB @ 10'
Overall dimensions
39" x 32" x 79"
   Ship wt. 125-lbs



#7145

$1,400.00
 (sug. retail $1,599)
Portable Dust Collector-Single Stage

3-hp, 1-ph, 220v Air Flow 2,170 CFM Static Pressure 8.43 in. H2O
 4"x3 Inlet 20" dia. bag Sound rate 70dB @ 10'
Overall dimensions
66" x 23" x 110"
  Ship wt. 265-lbs





Filter Bag for 7120

Dust Collector-Single Stage Accessories
7120.A001    Filter Bag for 7120.001 $70.00
7120.A002   Collector Bag for 7120.001 $8.00
7140.A001    Filter Bag for 7140.001 $80.00
7140 Can    Canister for 7140.001 $300.00
7140.A002    Collector Bag for 7140.001 & 7150R.001 $8.00
7145.A001    Filter Bag for 7145.001 $100.00
7145.A002    Collector Bag for 7145.001 $8.00

Collector Bag for 7120


#7150
$2,200.00
 (sug. retail $2,515)


#7160
$2,500.00
 (sug. retail $2,857)
Dust Collector   2-Stage Cyclone Bag with remote

3-hp, 1-ph, 230v Air Flow 2,000 CFM Static Pressure 13 in. H2O
8" or 4x3 Inlet 19-5/8" dia. bag Sound rate 75-85dB @ 10'
Overall dimensions
67" x 45" x 91"
60 gal drum cap.  Ship wt. 275-lbs

Dust Collector   2-Stage Cyclone Bag with remote

5-hp, 1-ph, 230v Air Flow 3,500 CFM Static Pressure 16 in. H2O
10" or 4x4 Inlet 23-5/8" dia. bag Sound rate 75-85dB @ 10'
Overall dimensions
71" x 51" x 118"
60 gal drum cap.  Ship wt. 425-lbs

#7155
$2,800.00
 (sug. retail $3,200)


#7165
$3,700.00
 (sug. retail $4,229)
Dust Collector   2-Stage Cyclone Canister with remote

3-hp, 1-ph, 230v Air Flow 2,100 CFM Static Pressure 13 in. H2O
8" or 4x3 Inlet 19-5/8" dia. bag Sound rate 75-85dB @ 10'
Overall dimensions
67" x 45" x 91"
60 gal drum cap. Ship wt. 430-lbs



Dust Collector   2-Stage Cyclone Canister with remote

5-hp, 230v (440 spl ord)
1-ph  Model 7165.001
3-ph  Model 7165.002
Air Flow 3,600 CFM Static Pressure 16 in. H2O
10" or 4x4 Inlet 23-5/8" dia. bag Sound rate 75-85dB @ 10'
Overall dimensions
71" x 51" x 118"
60 gal drum cap.  Ship wt. 625-lbs


Dust Collector-Two Stage Cyclone Accessories

7150.A001    Filter Bag for 7150.001R $120.00
7140.A002    Collector Bag for 7140.001 & 7150R.001 $8.00
7155 Can    Replacement Canister only for 7155R $600.00
7155.A001    Collector Bag for 7155.001R $8.00
7160.A001    Filter Bag for 7160.001R $160.00
7164 Can    Replacement Canister only for 7165.001/2R $700.00
7160.A002    Collector Bag for 7160.001R & 7165.001/2R $8.00
7150.A003    Drum Bag for 7150/7155/7160/7165 $9.00
7155 RB    Replacement Control only for all remote models $80.00
